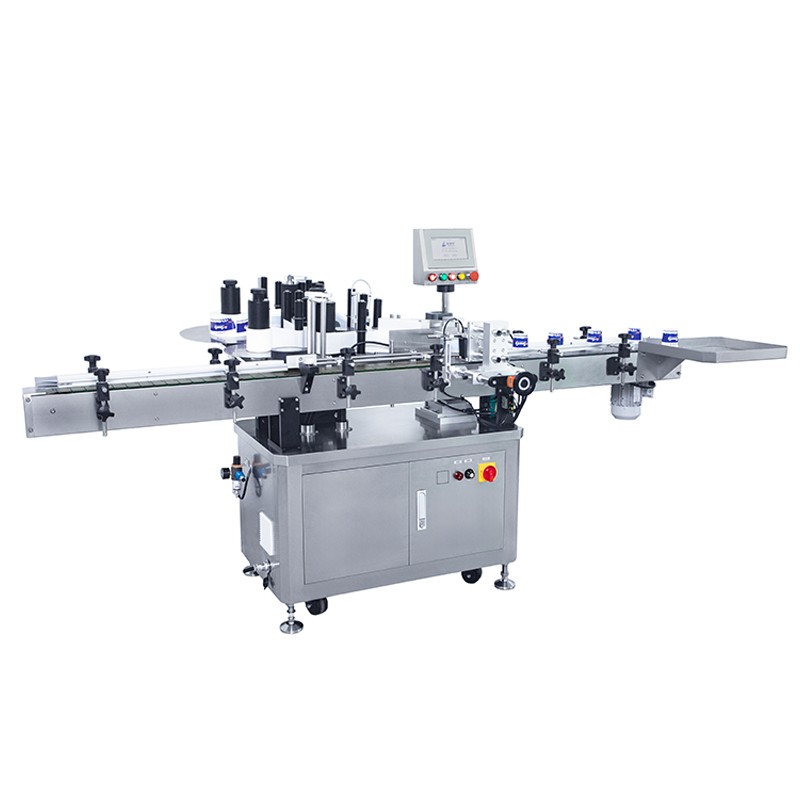

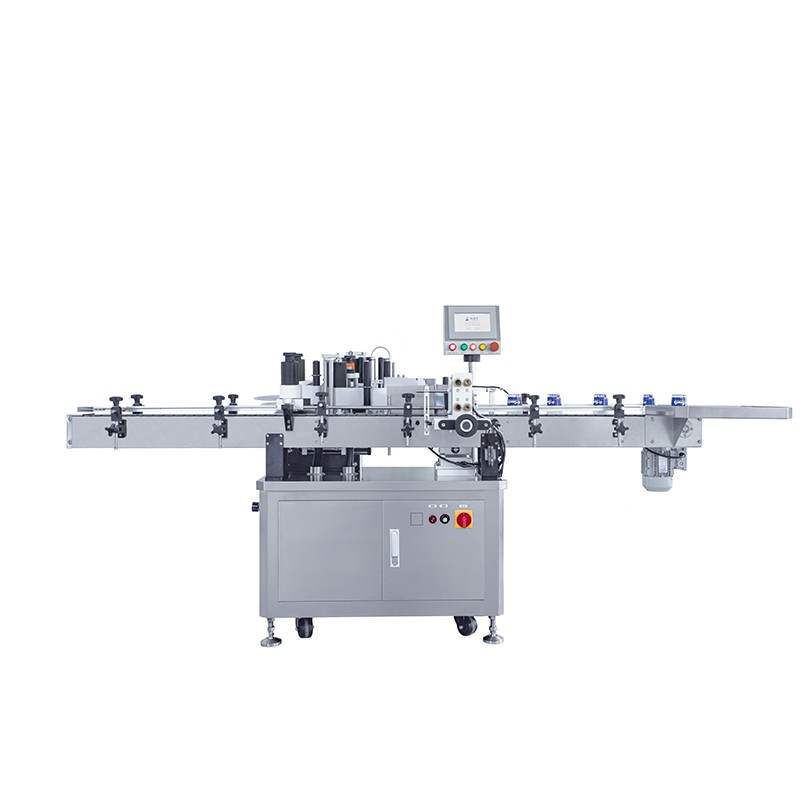

Positioning Wrap Around Round Bottle Labeling Machine
Model: Y-200
Designed for vertical point-to-point labeling of round bottles and conical bottles.Positioning adhesive labeling machine.
- Speed:0-60 bottles /min
- Application Bottle Size:Φ35-80 mm
- Applicable Label Size:L:15-100mm,W:15-150mm
- Power Supply:3KW, AC220V, 50/60HZ
- Technical Parameter
- Electrical Parameter
- Application Samples
| Machine Parameters | |
| Applicable bottle diameter | Φ35-80 mm |
| Labeling speed | 0-60 bottles /min |
| Labeling accuracy | ±0.5mm ( except packaging material error ) |
| Product broken rate | ＜ 0.01 % |
| Labeling pass rate | > 99.9% |
| Power supply | 3KW, AC220V, 50/60HZ |
| Air consumption | 0.5Mpa,300L /min |
| Machine dimension | 2580*1300*1328mm |
| Total weight (approximately) | Around 300Kg |
| Self-adhesive label parameters | |
| Applicable label material | Transparent labels, coated paper & PE, etc. |
| Applicable inner diameter of the label roll | φ76mm |
| Maximum label roll outer diameter | Φ400mm |
| Applicable label size | L:15-100mm,W:15-150mm |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Thickness | >55 μm |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
| Transparency | 52% |
| Electronic control system | ||
| PLC | S7-200 smart | SIEMENS (Germany) |
| Power Supplier | LRS-100-24 ( DC24V/100W) | MEAN WELL (Taiwan) |
| Air switch | ic65N-c16A | Schneider (France) |
| Air switch | ic65N-c10A | Schneider (France) |
| Relay | MY2N- GS | OMRON (Japan) |
| Chassis unit | ||
| Main material | Stainless steel SUS304 | |
| Chassis dimension | 1200(L)×850(W)×1840(H) mm | |
| Case structure material | Stainless steel square tube SUS304 | |
| Outer sealing material | Stainless steel SUS304 | |
| Illuminated button ( red ) | XB2BA42C | Schneider (France) |
| Emergency stop switch | XB2BS542C | Schneider (France) |
| Threshold switch | SN05-N | ROKO (Taiwan) |
| Conveyor mechanism | ||
| Main material | Stainless steel SUS304, aluminum A6061, plastic steel chain plate, POM | |
| Conveying motor and reducer | 5IK60GN-YFT 5GN15K | TWT (Taiwan) |
| Conveyor Motor Inverter | FC - 051 0.37 KW | Danfoss (Denmark) |
| Labeling host head | ||
| Main material | Stainless steel SUS304, Aluminum A6061, POM | |
| Label pulling servo motor | SGM7J-08AFC6S | YASKAWA (Japan) |
| Label pulling servo drive | SGD7S-5R5A00B202 | YASKAWA (Japan) |
| Label stock sensor | PRK3C.T3/2N | Leuze (Germany) |
| Label detection sensor | LRD-2100 | LION (USA) |
| HMI | ||
| Main material | Stainless steel SUS304, aluminum A6061 | |
| Touch screen | PFXGP4402W | Proface (Japan) |
| Illuminated button ( green ) | XB2BA31C | Schneider (France) |
| Illuminated button ( yellow ) | XB2BA51C | Schneider (France) |
| Illuminated button ( red ) | XB2BA42C | Schneider (France) |
| Emergency Button | XB2BS542C | Schneider (France) |
| Rotary Switches | ZB5AK1253C | Schneider (France) |
Differential-speed bottle-sorting mechanism
No replacement of standard parts is required—simply adjust the positions of the existing components. Additionally, a screw bottle-sorting mechanism can be optionally selected based on user requirements.

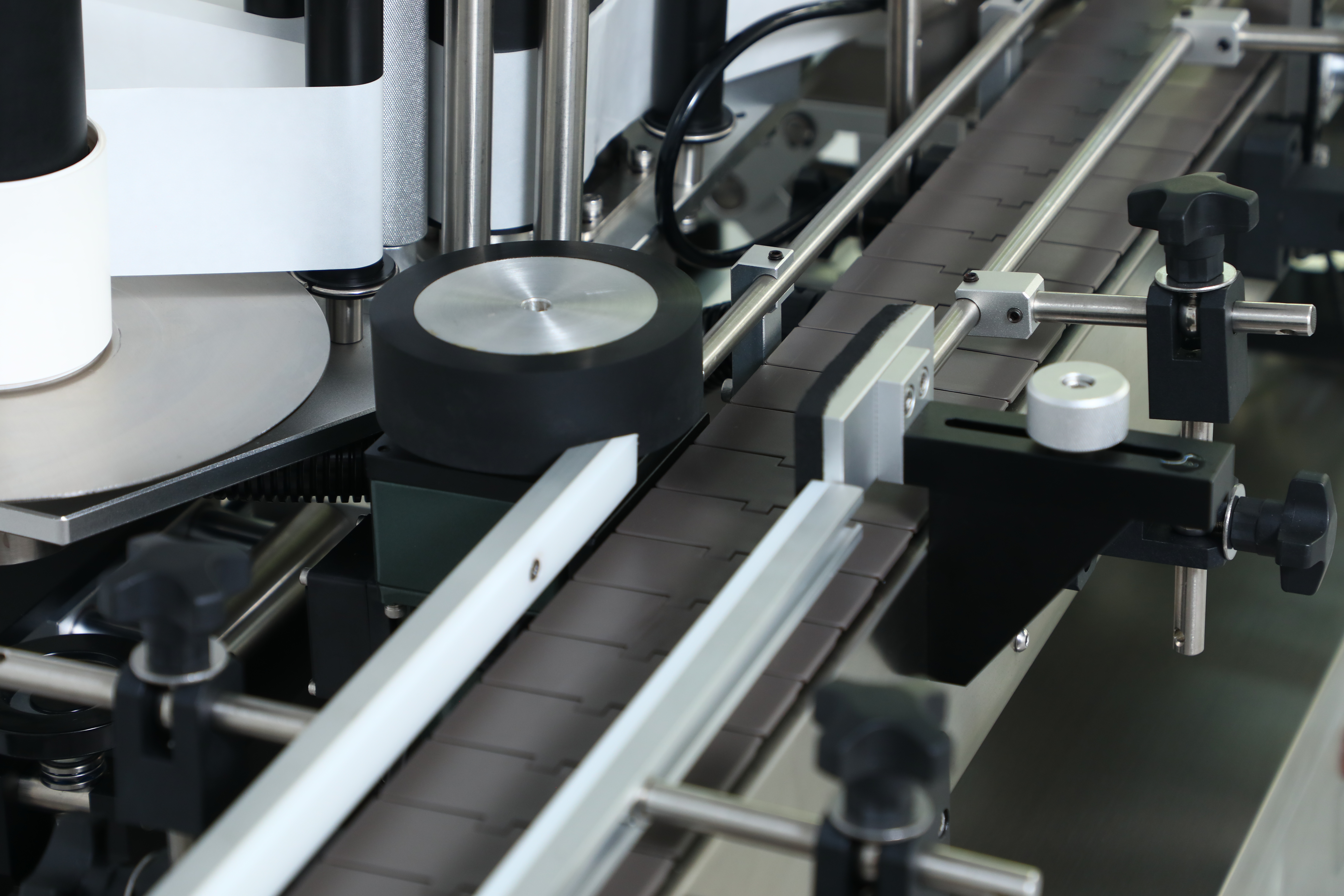

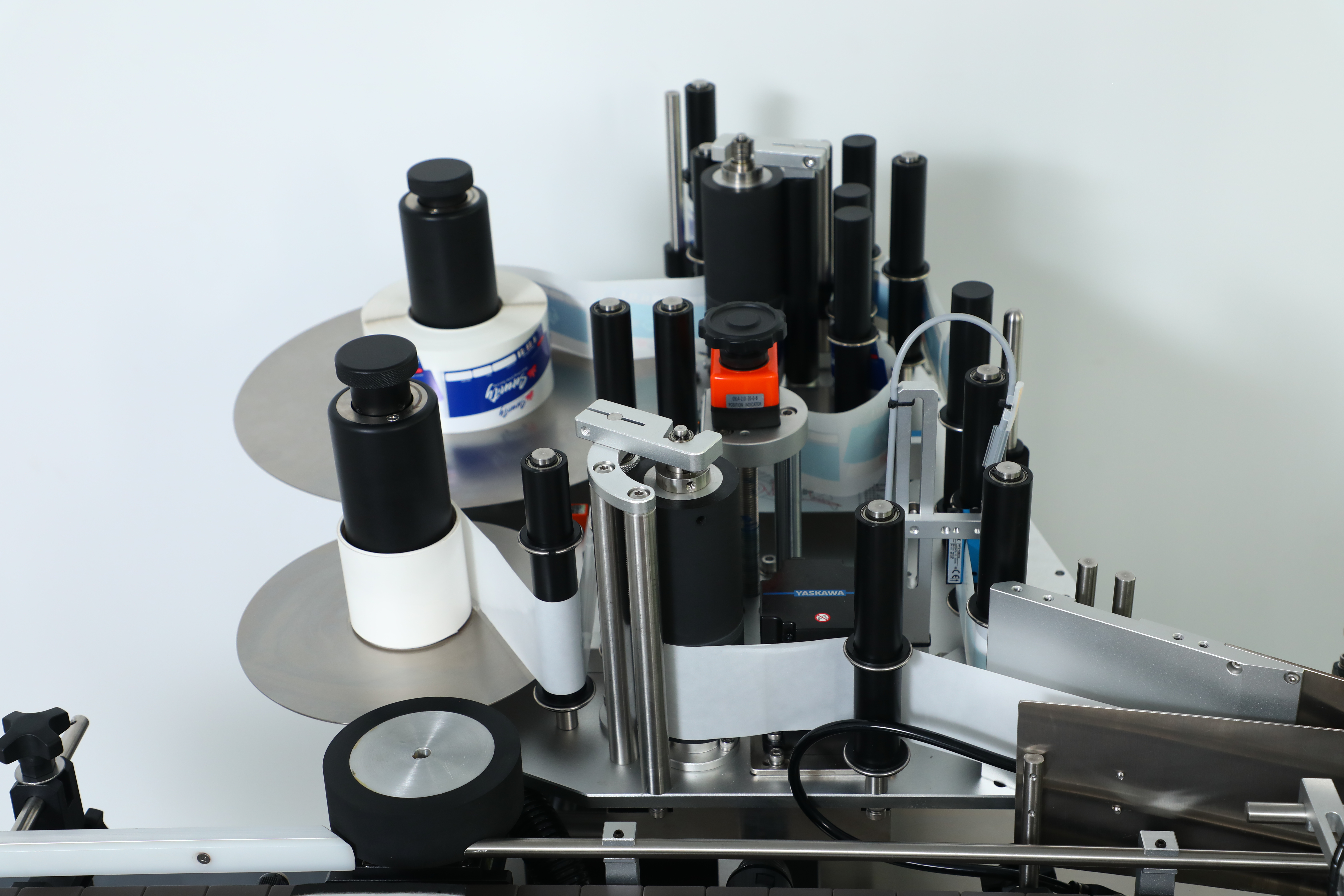

The labeling head features a three-section design
A label feeder, a label pulling mechanism, and a backing paper recycling unit. Each section is driven by its own motor, ensuring fast and stable label transfer.
Unique pneumatic cylinder positioning system
Our fixed-position round bottle labeling machine is equipped with a pneumatic cylinder positioning system, delivering rapid operation and exceptional versatility for various bottle sizes. This design allows for swift and convenient adjustments to accommodate different specifications, ensuring minimal downtime and enhanced productivity.
Related Products
Machine Features
China Positioning Wrap Around Round Bottle Labeling Machine Manufacturer

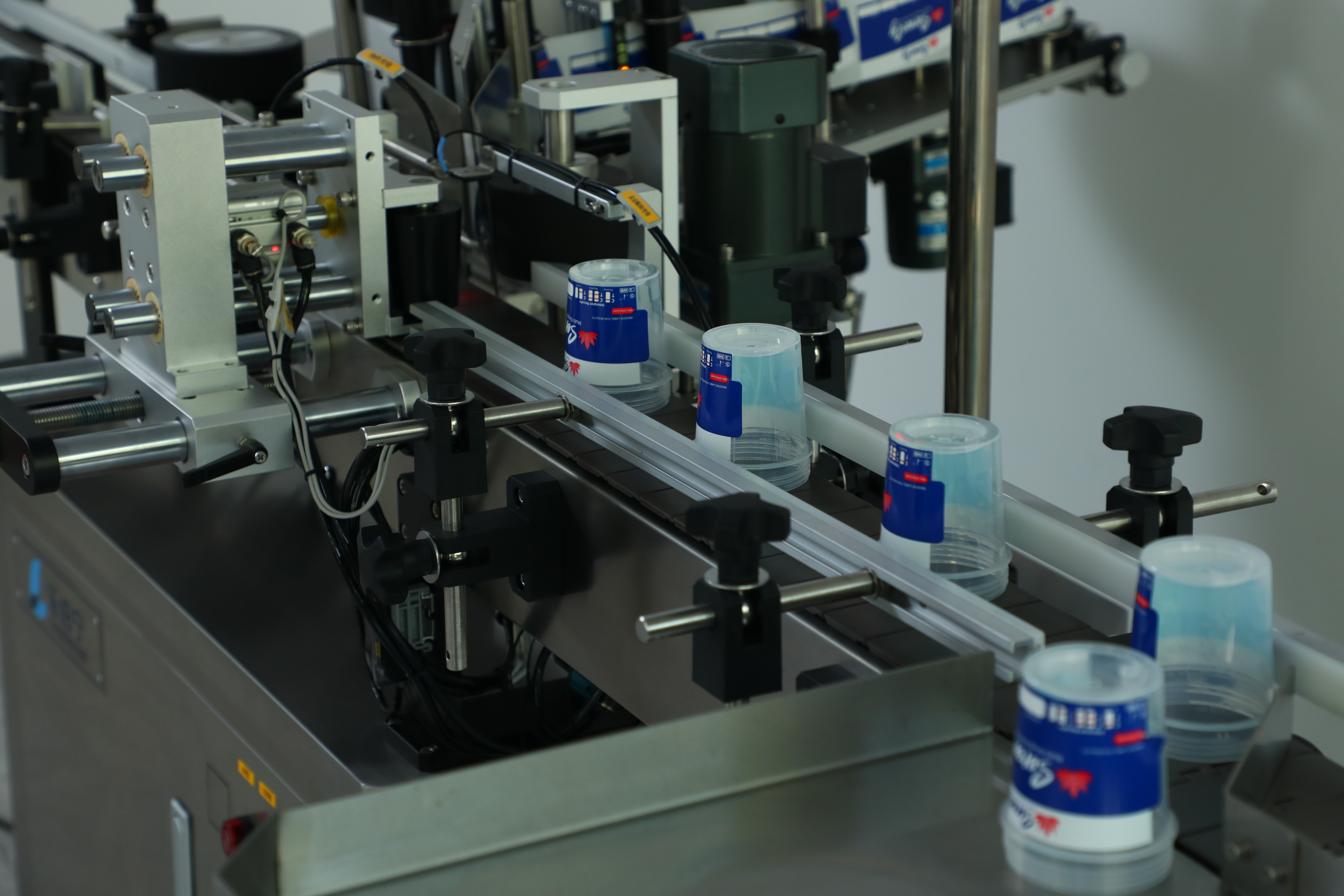

The high-speed pharmaceutical labeling machine, designed for round bottles, is well-suited for various types of round bottles and taper bottle, including glass bottles and plastic bottle, with diameters ranging from 35mm to 80mm. Operating at speeds of up to 60 bottles per minute, this advanced equipment ensures efficient and precise labeling for a diverse range of pharmaceutical containers in the specified size range
Applicable to various types of round bottles and taper bottle with diameters ranging from 35mm to 80mm.
Capable of achieving speeds of up to 60 bottles per minute, ensuring a rapid and efficient labeling process for high-volume pharmaceutical production lines.
The operation direction of the equipment is the left type, that is, the material is fed from the left and the material is discharged from the right. The equipment can be used as a stand-alone machine, or it can be connected and linked with other equipment in the production line.
The equipment is controlled by Siemens PLC and touch screen. The main electrical components are all internationally renowned brands to ensure the stability of equipment operation and the convenience of maintenance. Wires and electrical components can withstand the corrosion of ozone, alcohol, glutaraldehyde, peracetic acid, hydrogen peroxide, formaldehyde and other disinfectants that meet regulatory requirements for a long time.
Utilizes advanced technology to deliver precise and accurate labeling on small-sized cylindrical containers, meeting the stringent requirements of the pharmaceutical industry.
