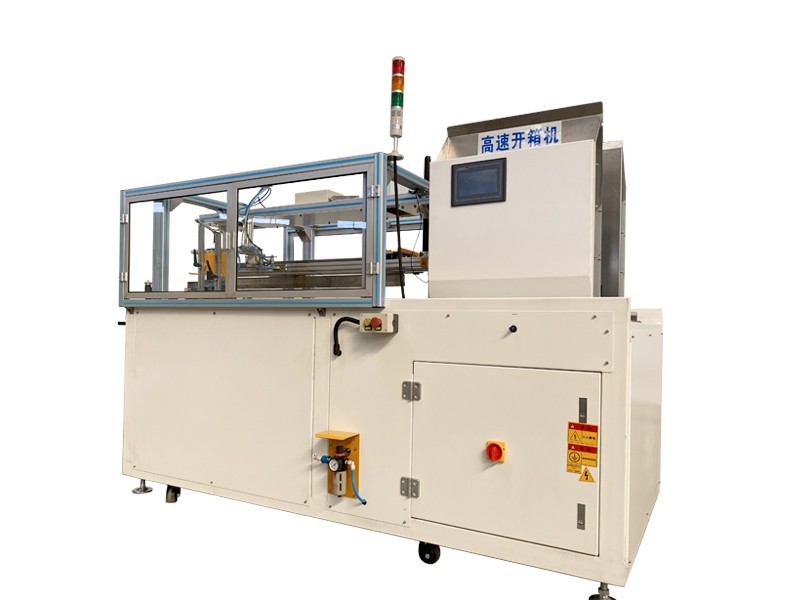

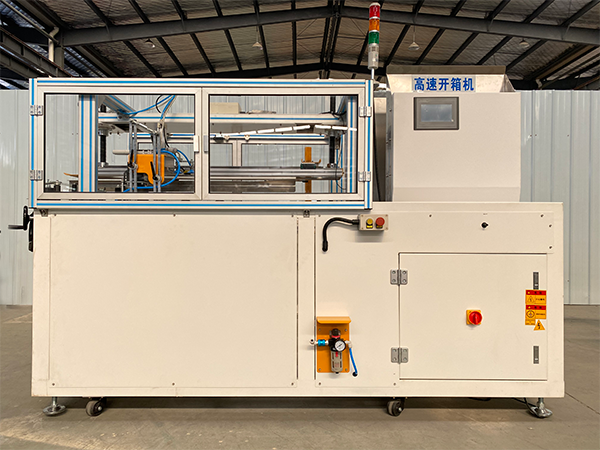

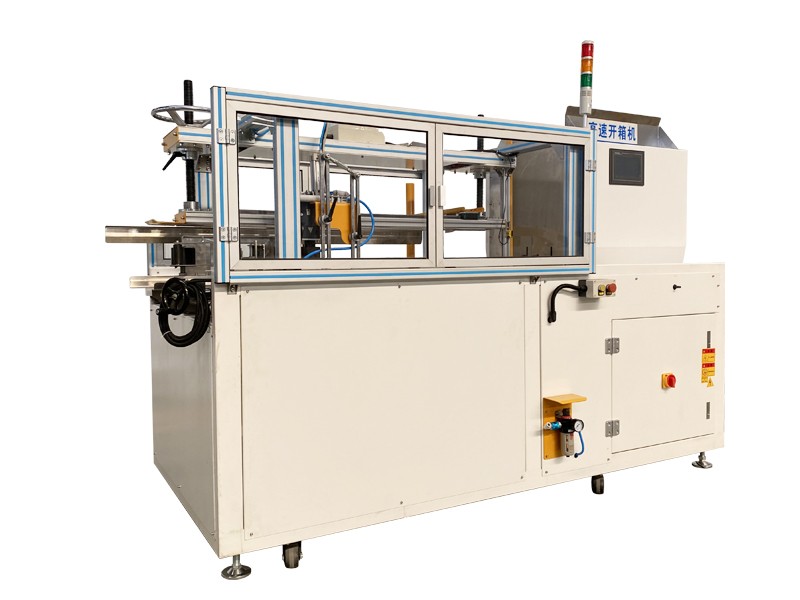

High Speed Carton Erecting Machine
Model: KX-25
It is widely used in warehousing, e-commerce, printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other mass production industries.
- Speed:up to 25 cases/min
- Applicable Carton Size:L 250-450*W 150-350*H 150-350mm
- Applicable Tape Size:48mm, 60mm, 72mm
- Carton Storage Quantity:50pcs
- Technical Parameter
- Electrical Parameter
- Application Samples
| Model | KX-25 |
| Speed | 20~25cartons/minn |
| Applicable Carton Size | L 250-450*W 150-350*H 150-350mm |
| Applicable Tape Size | 48mm, 60mm, 72mm |
| Carton Storage Quantity | 50 pieces |
| Machine Out-feeding Height | 960-1000mm |
| Air Consumption | 6kg/cm2, 450NL/min |
| Power | 1KW |
| Voltage | 220V 50HZ |
| Machine Size | L2268*W1330*H1700mm |
| Weight | 990KGS |
| PLC | Siemens/Germany |
| Motor | TECO/China |
| Touch Screen | MCGS/China |
| Sensor | Banner/USA |
| Cylinder | AirTac/Taiwan |
| Pressure reducing valve | FESTO/Germany |
| Low-voltage apparatus | Schneider/France |

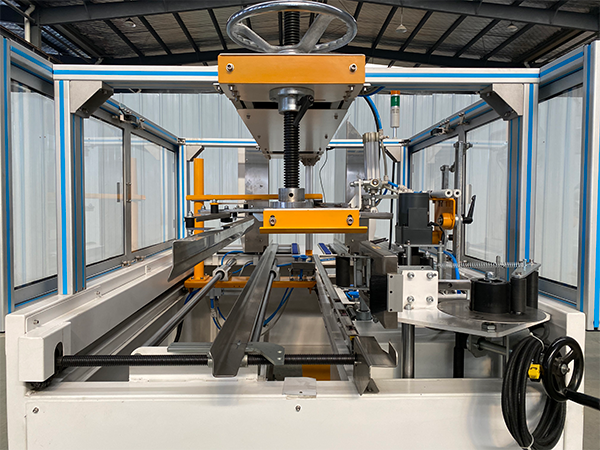

Carton Forming
The machine utilizes various mechanisms to fold and shape the flat carton blanks into horizontal cartons. This process includes erecting the carton, closing the bottom flaps, and forming the sides of the carton in a horizontal orientation.

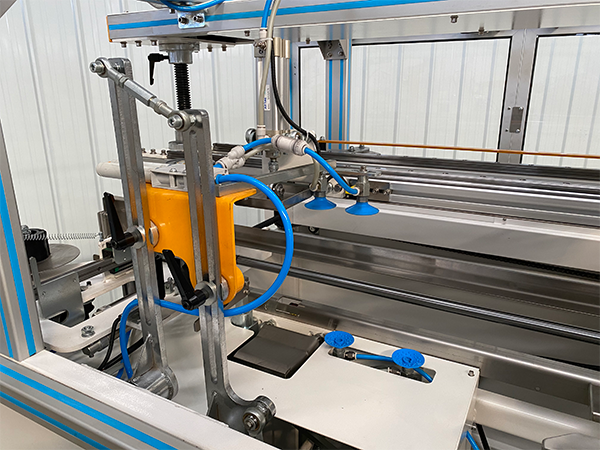

Carton Size Adjustment
Horizontal carton erectors are adjustable to accommodate various carton sizes and styles, providing flexibility in packaging different products in a horizontal orientation.
Horizontal Carton Erector Machine
Horizontal carton erectors play a crucial role in industries where products need to be packaged horizontally, automating the carton assembly process, improving efficiency, and ensuring products are securely packaged in horizontal cartons ready for distribution and sale.
Related Products
Machine Features
China High Speed Horizontal Carton Erecting Manufacturer
A horizontal carton erector is a specialized packaging machine designed to automatically assemble flat carton blanks into fully formed, horizontally oriented cartons or boxes.
Carton erectors are designed for high-speed operation, significantly increasing the efficiency and output of the packaging process.
Carton erectors are typically user-friendly, with control panels that allow for easy setup and adjustment to suit different carton sizes and styles.
Safety measures are often integrated to protect operators and prevent accidents during machine operation.
The machines are designed to ensure the formed cartons are consistent in quality, minimizing defects in the carton's structure.
They can be integrated into larger packaging lines, working in tandem with other machines like fillers, carton packer, and conveyors to create a complete and seamless packaging process.
