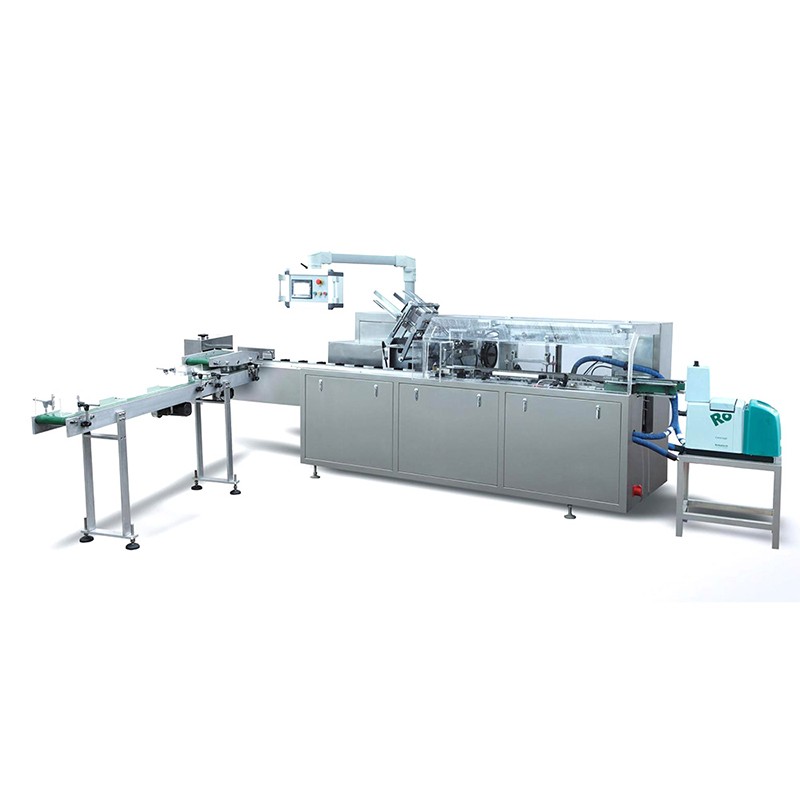

Automatic Paper Tissue Cartoning Machine
Model: CSZ-130
CSZ-130 has a widely using range of the products,can be designed for paper tissue box,paper towel box,napkin box.
- Speed:40-80cartons/min
- Application Box Size:L(90-260)mm×W(70-120)mm×H(30-90)mm
- Cardboard Material:300-450g/㎡
- Power Supply:1.5KW 380V 50Hz
- Technical Parameter
- Electrical Parameter

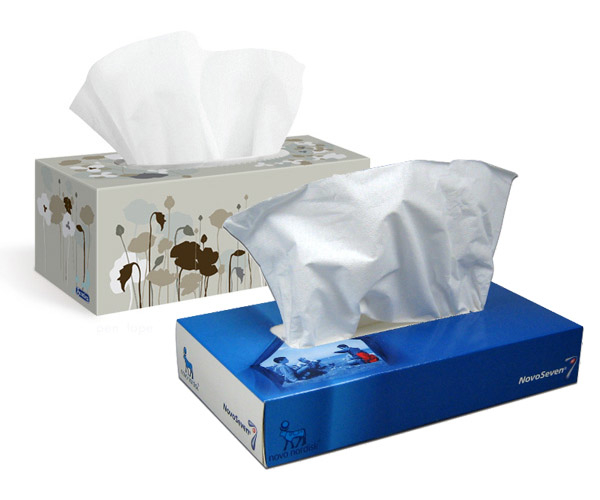

- Application Samples
| Model | CSZ-130 |
| Packing speed | 40-80cartons/min |
| Size of package | L(90-260)mm×W(60-130)mm×H(30-90)mm |
| Cardboard material | 250-450g/㎡ |
| Instruction material | 60-70g/㎡ |
| Instruction size (Unfold) | (80-150) x (90-170)mm |
| Instruction size (Fold) | (1-4) Fold |
| Motor power | 1.5kw |
| Power supply | 380V 50HZ or 220V 50HZ |
| Minimum Air pressure | 0.5-0.8 Mpa |
| Air consumption | 120-160L/min |
| Maximum noise | 80dB |
| Overall dimension | L3800mm×W1350mm×H1900mm |
| Weight | 1500Kg |
| PLC | CPIE-N30DT-D/Omron |
| PLC Extened Module | CPIE-C1F11/Omron |
| Touch Screen | NB7W-TW00B/Omron |
| Sensor | E3Z-D61/Sick |
| Frequency | 3G3JZ-A4015/Omron |
| Relay | MY2 NJ24V/Omron |
| Button | XB2/Schneider |
| Emergency Stop | ZB2 BC4D/Schneider |
| Electromagnetic Valve | 4V210-08/Airtac |
| Pressure Regulator Valve | BFR-2000/Airtac |
| Proximity Switch | TL-Q5MC1/Omron |
| AC contactor | LC1E3210M5N/Schneider |
| Air switch | 3P32A 1P6A/Schneider |
| Vaccum Sounder | ABM20-C/SMC |

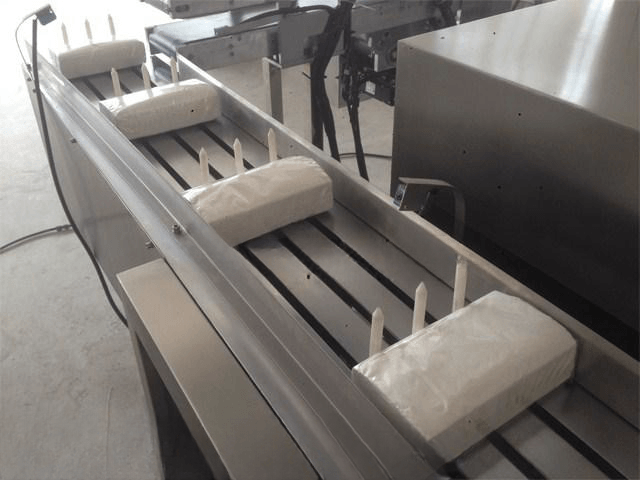

Feeding Mechanism
The machine is equipped with a mechanism to feed paper tissues into the packaging process. This could involve the controlled release of individual tissues or a predetermined quantity of tissues for each packaging cycle.

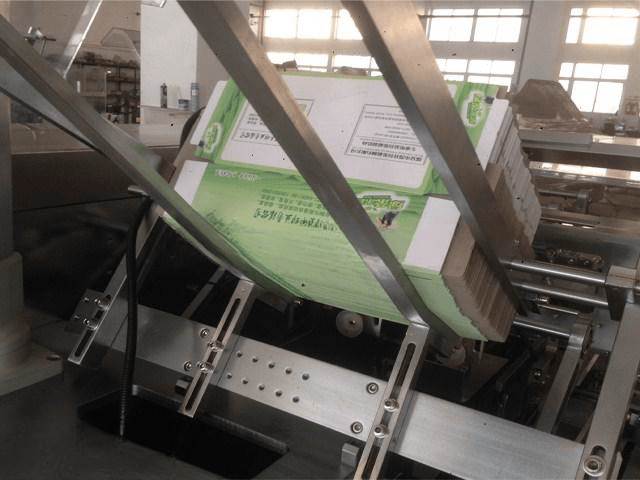

Carton Forming
The machine is capable of forming cartons or boxes that will contain the paper tissues. This may involve folding and sealing carton blanks to create the final packaging.

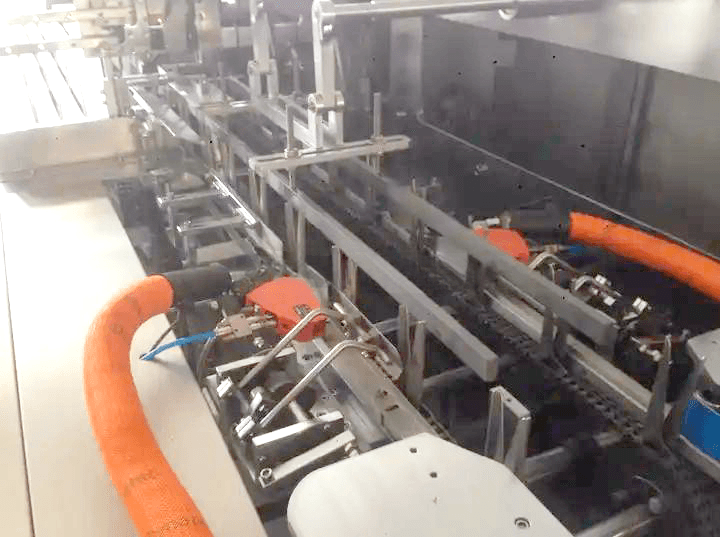

Sealing
Once the paper tissues are placed inside the cartons, the machine seals the cartons securely. This could involve glue sealing, tucking, or other sealing methods to ensure the packaging is secure.
Related Products
Machine Features
China Automatic Paper Tissue Cartoning Machine Factory
A paper tissue cartoning machine is a specialized packaging machine designed for the automatic cartoning or boxing of paper tissue products. These machines are commonly used in paper tissue manufacturing and packaging facilities to streamline the process of placing paper tissue into cartons or boxes.
They automate various packaging processes, including paper tissue feeding, box forming, and sealing. This reduces the need for human intervention and minimizes the risk of operator errors.
Our cartoning machines automate the packaging process, significantly increasing the speed and efficiency of paper tissue-to-box packaging.
Paper tissue cartoning machines can handle various paper tissue pack sizes and shapes, making them suitable for different products.
Automatic packing machines have built-in quality control mechanisms to detect missing product, ensuring that only correctly packaged products are released.
This machines can be seamlessly integrated into existing production lines, connecting with other packaging and filling equipment for a streamlined manufacturing process
