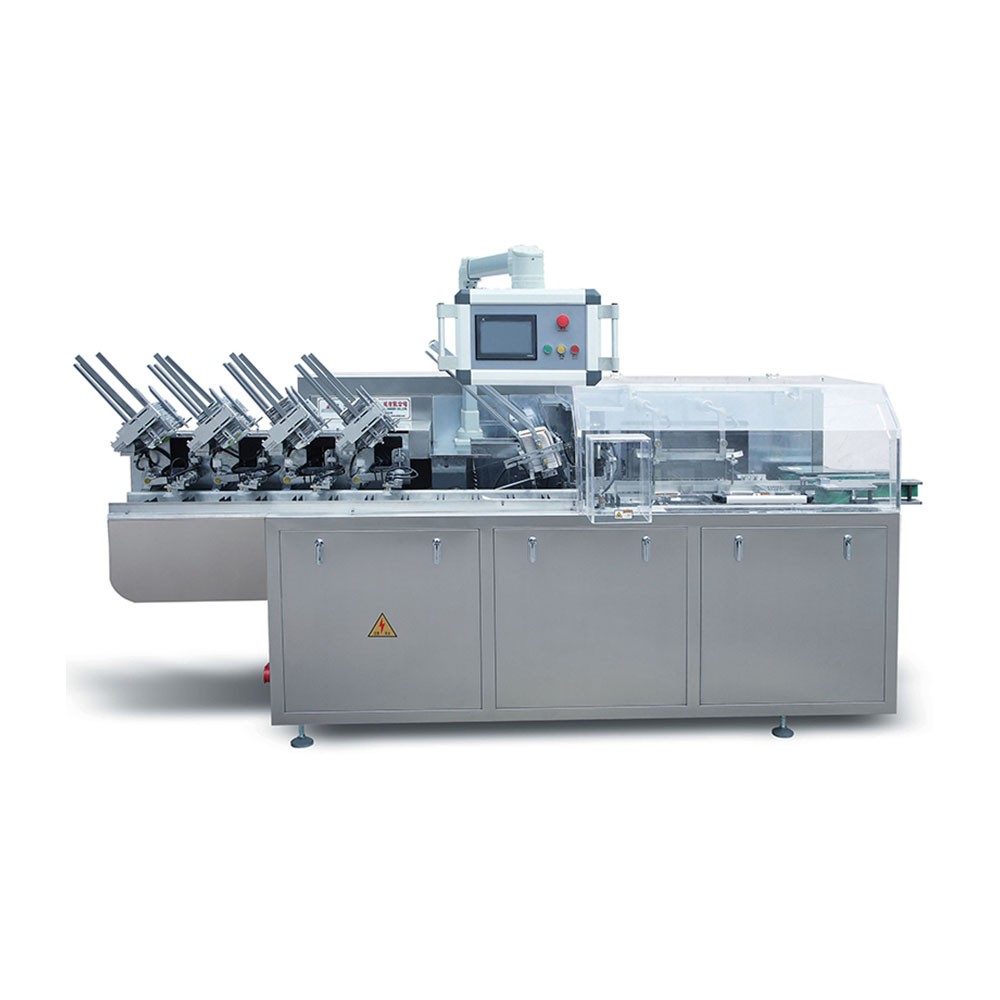

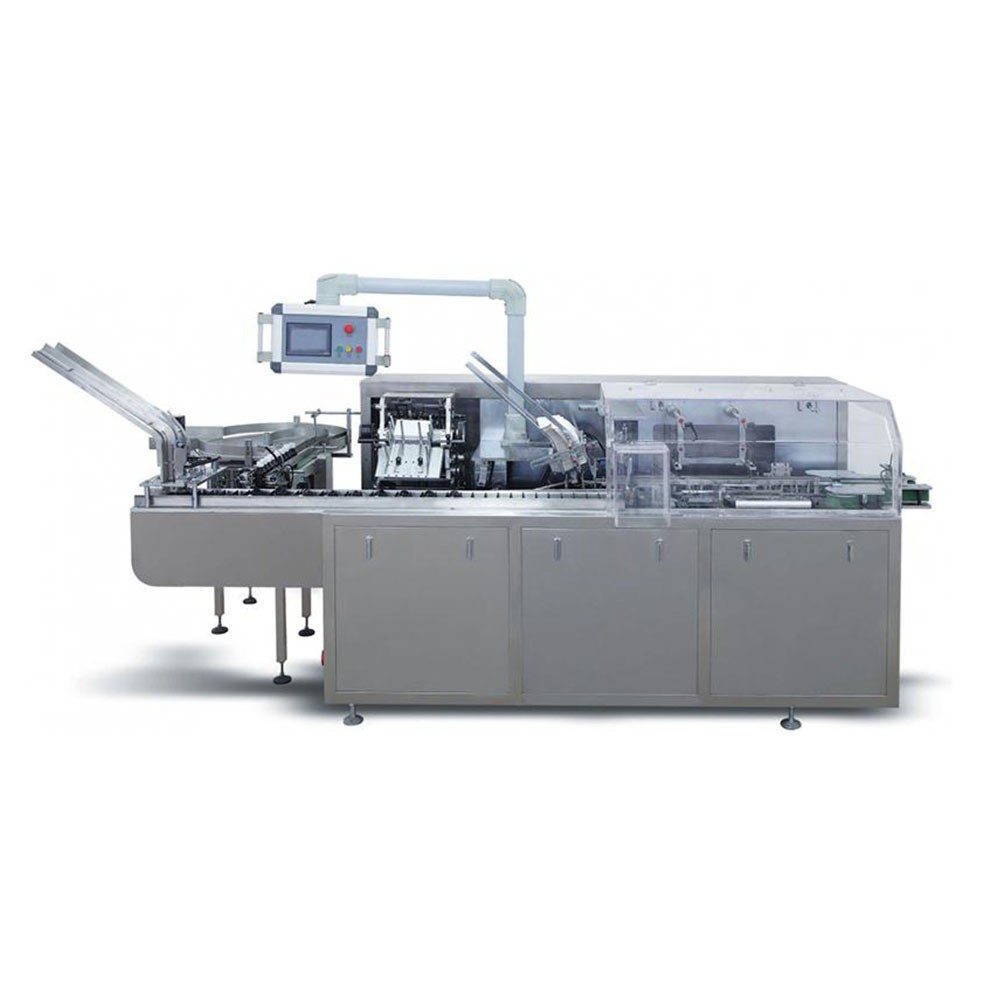

Automatic Small Bottle Cartoning Machine
Model: CSZ-100B
The CSZ-100B cartoning machine streamlines and automates the process of packaging bottles, ensuring efficiency and accuracy in the packaging of a wide range of bottle shapes and sizes.
- Speed:30-90cartons/min
- Application Box Size:L(70-220)mm×W(14-90)mm×H(14-65)mm
- Cardboard Material:300-450g/㎡
- Power Supply:1.5KW 220V 50Hz
- Technical Parameter
- Electrical Parameter
- Application Samples
| Model | CSZ-100B |
| Packing speed | 30-90cartons/min |
| Size of package | L(70-220)mm×W(14-90)mm×H(14-65)mm |
| Cardboard material | 250-350g/㎡ |
| Instruction material | 60-70g/㎡ |
| Instruction size (Unfold) | (80-150) x (90-170)mm |
| Instruction size (Fold) | (1-4) Fold |
| Motor power | 1.5kw |
| Power supply | 220V 50HZ |
| Minimum Air pressure | 0.6Mpa |
| Air consumption | 120-160L/min |
| Maximum noise | 80dB |
| Overall dimension | L3100mm×W1100mm×H1900mm |
| Weight | 1500Kg |
| PLC | CPIE-N30DT-D/Omron |
| PLC Extened Module | CPIE-C1F11/Omron |
| Touch Screen | NB7W-TW00B/Omron |
| Sensor | E3Z-D61/Sick |
| Frequency | 3G3JZ-A4015/Omron |
| Relay | MY2 NJ24V/Omron |
| Button | XB2/Schneider |
| Emergency Stop | ZB2 BC4D/Schneider |
| Electromagnetic Valve | 4V210-08/Airtac |
| Pressure Regulator Valve | BFR-2000/Airtac |
| Proximity Switch | TL-Q5MC1/Omron |
| AC contactor | LC1E3210M5N/Schneider |
| Air switch | 3P32A 1P6A/Schneider |
| Vaccum Sounder | ABM20-C/SMC |

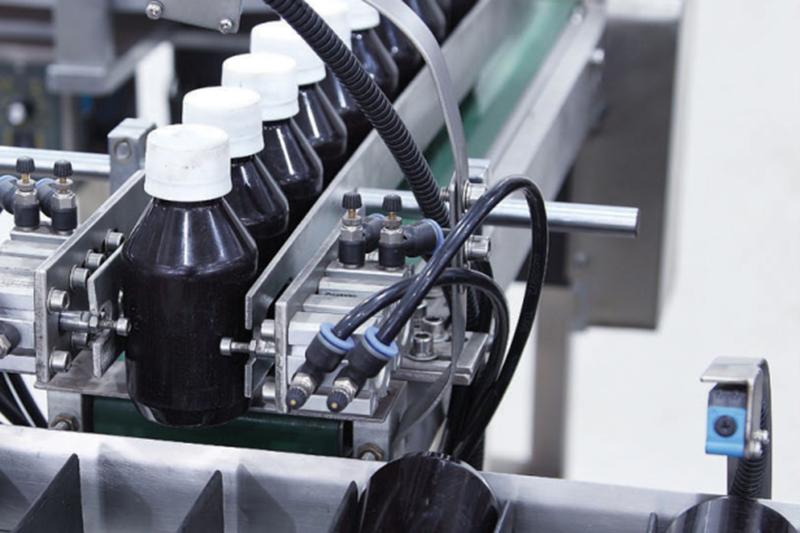

Automatic Bottle Feeding
Our packaging machines can automatically feed bottles of various shapes, including round and square, into the cartons. This reduces the need for manual labor and speeds up the packaging process.

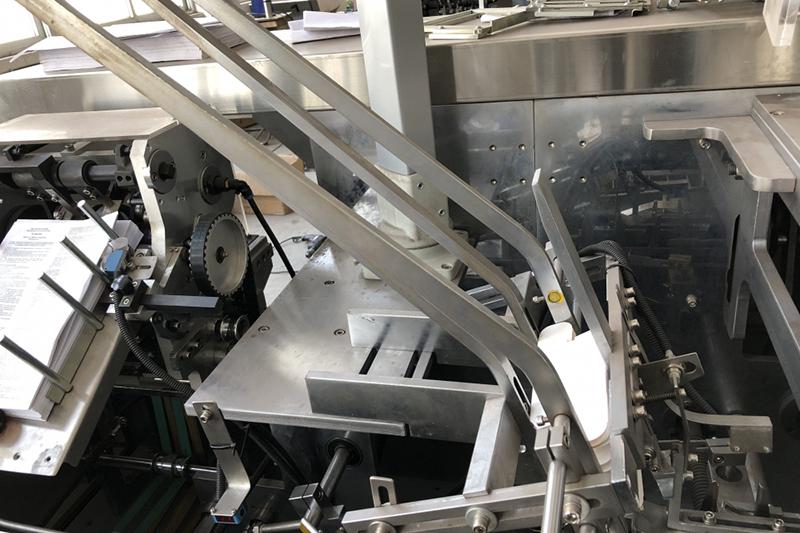

Leaflet Handling
Our bottle cartoning machines have the capability to fold and insert leaflets into the cartons, providing essential product information or documentation. They can handle leaflets with multiple folds (1-4 folds)

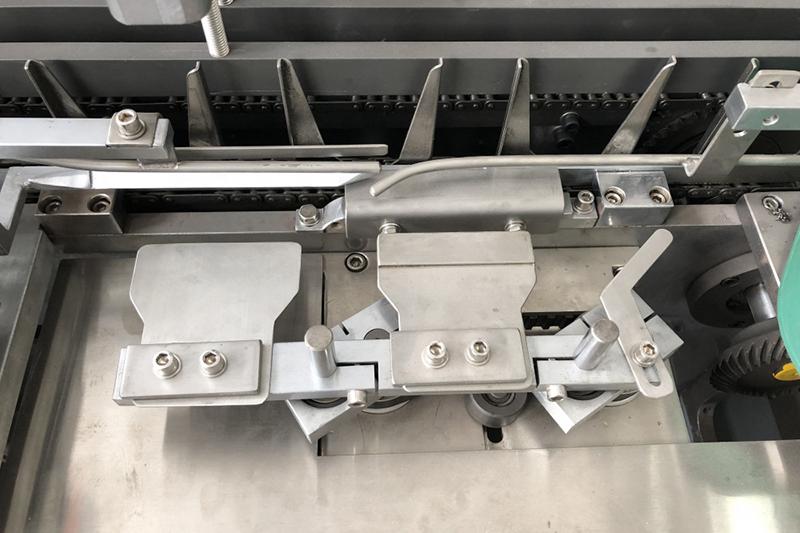

Carton Box Folding Sealing Options
Bottle cartoning machines offer flexibility in sealing methods. They can use tuck-in tabs to seal cartons or employ hot melt glue devices, depending on the specific packaging requirements.
Related Products
Machine Features
China Automatic Small Round Bottle Cartoning Machine Factory
A bottle cartoning machine is designed to automatically load bottles (both round and square) into cartons. This versatile machine performs various functions in the packaging process, including bottle unscrambling and feeding, folding and inserting leaflets, forming cartons, inserting bottle and leaflets into the cartons, printing batch numbers, and sealing cartons by either tuck-in or hot melt glue sealing.
They automate various packaging processes, including bottle feeding, leaflet insertion, carton forming, and sealing. This reduces the need for human intervention and minimizes the risk of operator errors.
Bottle cartoning machines are highly efficient and can work at a much faster pace than manual packaging. They can handle a large number of bottles per minute, contributing to increased production rates and reduced labor costs.
Bottle cartoning machines are designed to accommodate a variety of bottle shapes and sizes, including round and square bottles. This versatility makes them suitable for a wide range of products.

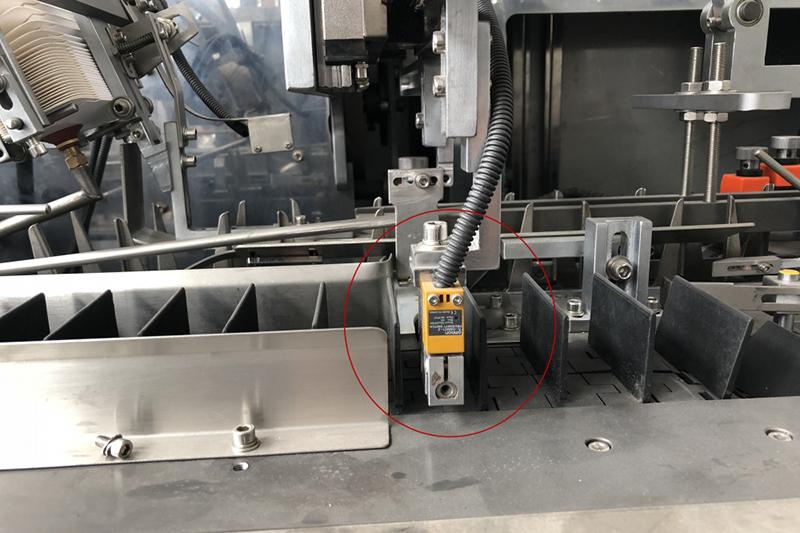

Our small bottle cartoning machines are equipped with quality control mechanisms to detect missing leaflets or bottles. This ensures that only properly packaged products are released, improving overall product quality.
This machines can be seamlessly integrated into existing production lines, connecting with other packaging and filling equipment for a streamlined manufacturing process
