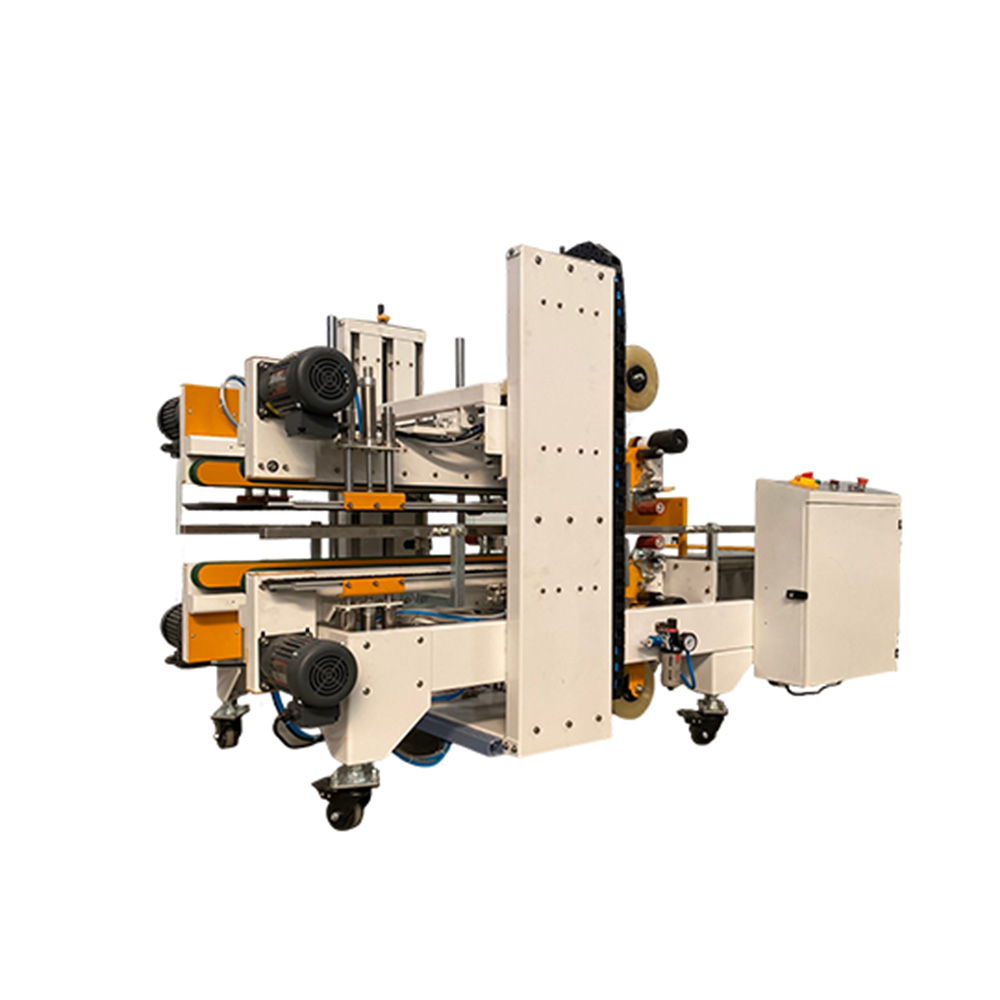

Automatic Corner and Side Sealing Machine
Model: FX-G50L
The automatic corner and side sealing machine is specially designed for securely sealing cartons at all four corners using tape
- Conveyor Speed:17.5m/min
- Application Box Size:L320-600 *W200-500*H180-500mm
- Applicable Tape Size:48mm,60mm,72mm
- Air Consumption:5kg.f/cm-100nl/min
- Technical Parameter
- Electrical Parameter
- Application Samples
| Model | FX-G50L |
| Conveyor Speed | 17.5m/min |
| Applicable Carton Size | L320-600 *W200-500*H180-500mm |
| Applicable Tape Size | 48mm 60mm 75mm |
| Machine Out-feeding Height | 600-650mm (Adjustable) |
| Air Consumption | 5kg.f/cm-100nl/min |
| Power | 1KW |
| Voltage | 220V 50HZ |
| Machine Size | L2000*W1130*H1530mm |
| Motor | GPG/Taiwan |
| Cylinder | AirTac/Taiwan |
| Limit Switch | Ormoron/Japan |
| Solenoid valve | AirTac/Taiwan |
| AC Contactor | Schneider/France |
| Intermediate Relay | Schneider/France |
| Button Switch | Schneider/France |
Versatile Sizing Capabilities
The automatic corner and side sealing machine allows for manual adjustment of its width and height in accordance with the carton's specifications. It is versatile and suitable for sealing all four corners of cartons of the same size simultaneously.

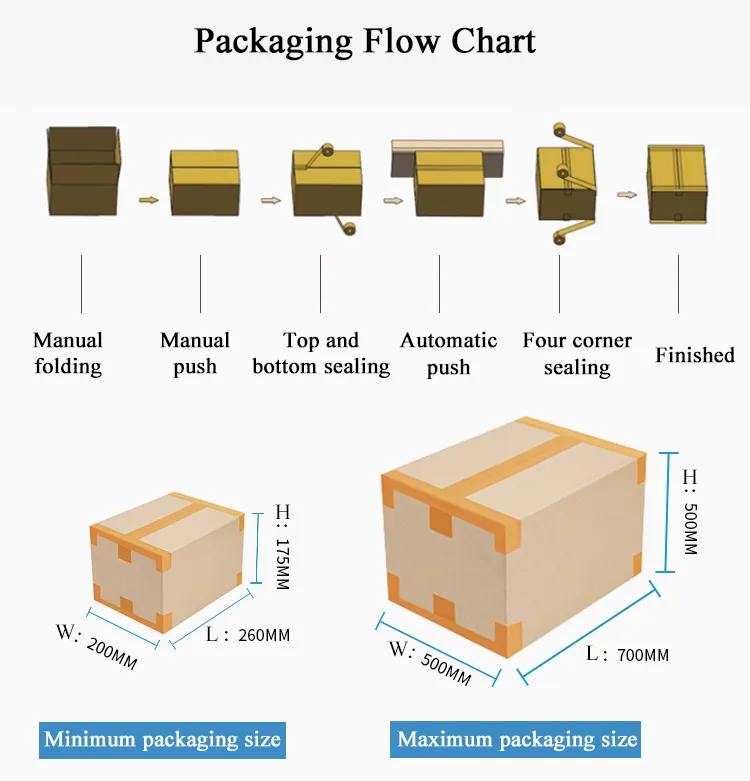

Multi-Step Sealing
It excels in sealing both the corners and sides of cartons. This comprehensive sealing process ensures the cartons are tightly sealed from all angles, enhancing the overall structural integrity of the package.
China Automatic Corner and Side Sealing Machine
An automatic corner and side sealing machine is a specialized device designed for efficiently sealing cartons. It automates the process of securely sealing both the corners and sides of cartons using adhesive tape.
Related Products
Machine Features
China Automatic Corner and Side Sealing Machine Manufacturer
An Automatic Corner and Side Sealing Machine, also known as an automatic carton sealer, is a specialized packaging equipment designed to streamline the process of sealing cardboard boxes or cartons. These machines are widely used in various industries for efficient and consistent box corner sealing
Carton sealers are designed for high-speed operation, significantly increasing the efficiency and output of the packaging process.
Automatic Corner and Side Sealing Machines are user-friendly, typically featuring control panels that allow for easy setup and adjustment to meet specific packaging requirements.
Safety measures are often integrated to protect operators and prevent accidents during machine operation.
The machines are engineered to ensure that the boxes are sealed consistently and securely, minimizing the risk of product damage during transit.
They can be integrated into larger packaging lines, working in tandem with other machines like case erector, carton packer, and conveyors to create a complete and seamless packaging process.
